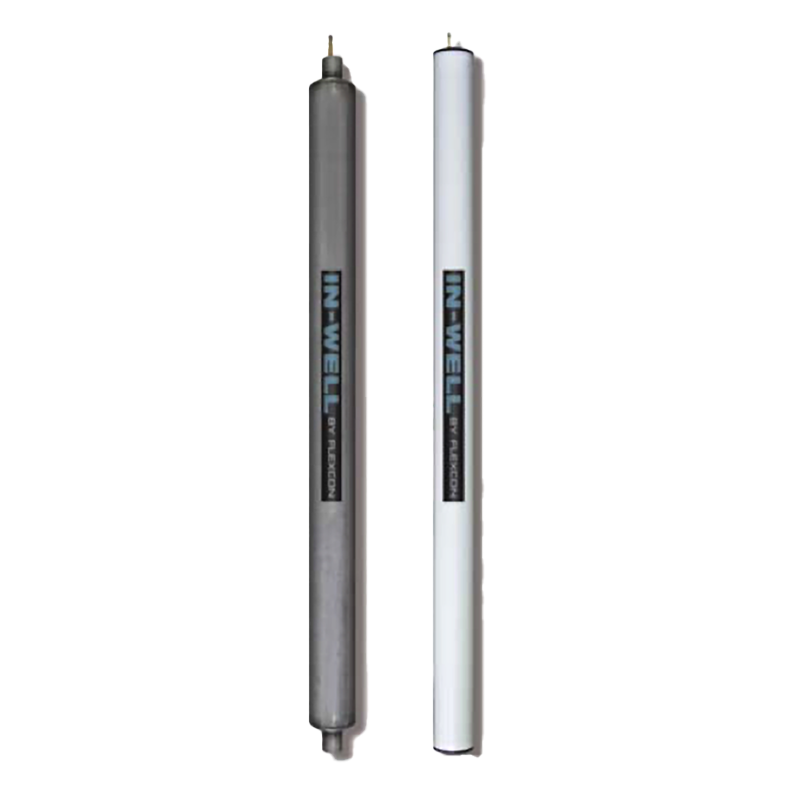

In-Well Pressure Tanks

  • Space-saving design installs in the well pipe
  • Designed to fit 4″, 5″ and 6″ wells
  • Corrosion proof, stainless steel or PVC outer shell maximizes life span and minimizes maintenance.
Request A Quote


  • Residential
  • Farm
  • Light commercial
  • Industrial


Outer Shell 5 ga. stainless steel / schedule 40 PVC
Air Cell 100% butyl rubber bladder
Capacity 3.5 to 4.25 Gal.

Features & Benefits

In-Well tanks are the perfect way to eliminate the presence of well tanks from both indoor and outdoor spaces.

This style of tank is installed directly in the well pipe and reduces, or eliminates, considerations for space, noise, condensation and freezing temperatures.

  • For use with a variable speed pump or constant pressure valve.
  • Threaded 1 1/4 FNPT system connectors make installation simple and easy.

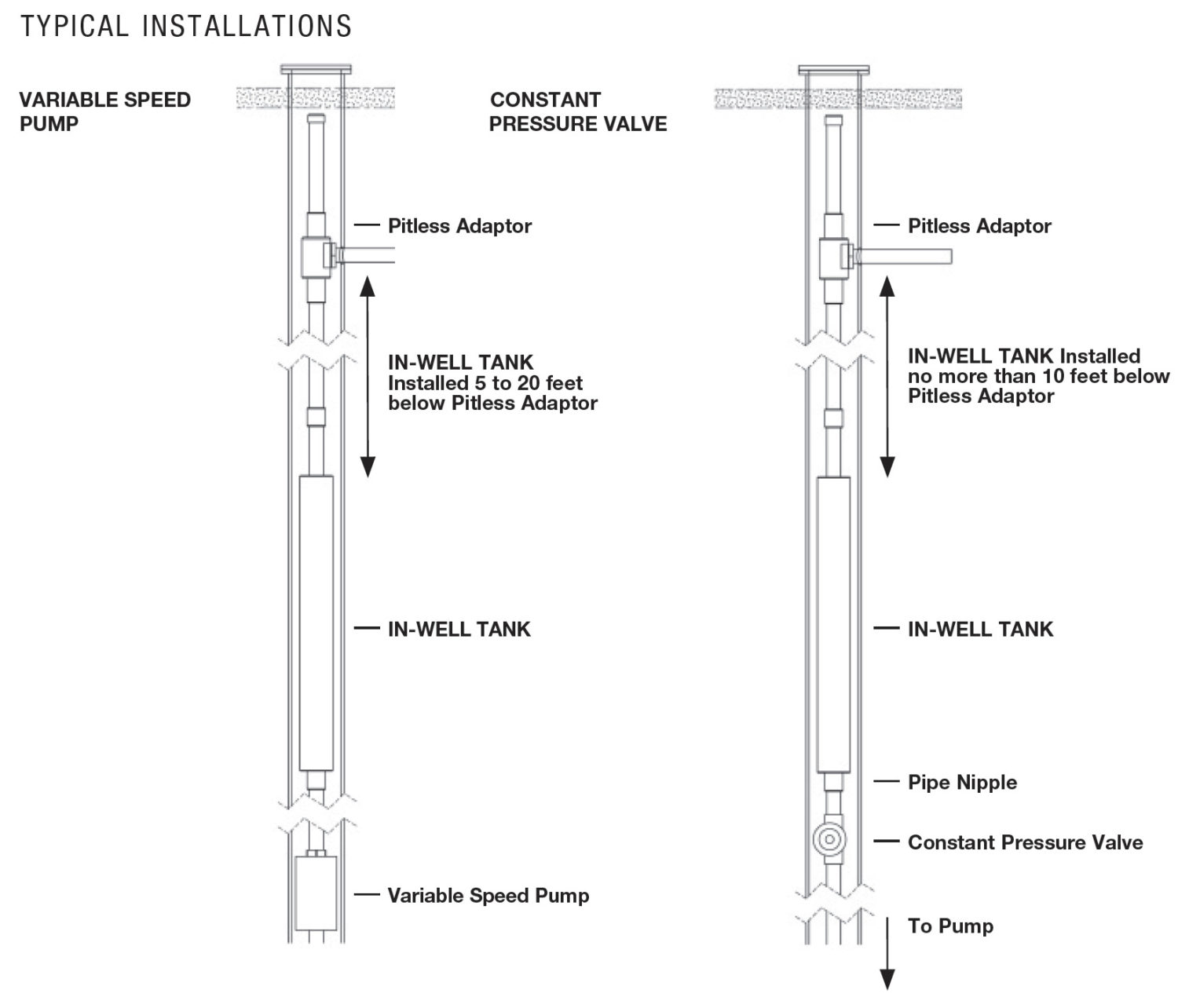

In-well tank installation

Product Resources

For General Information, Terms & Conditions, Performance Curves and Engineering Data, please reference our manufacturer’s resources.
