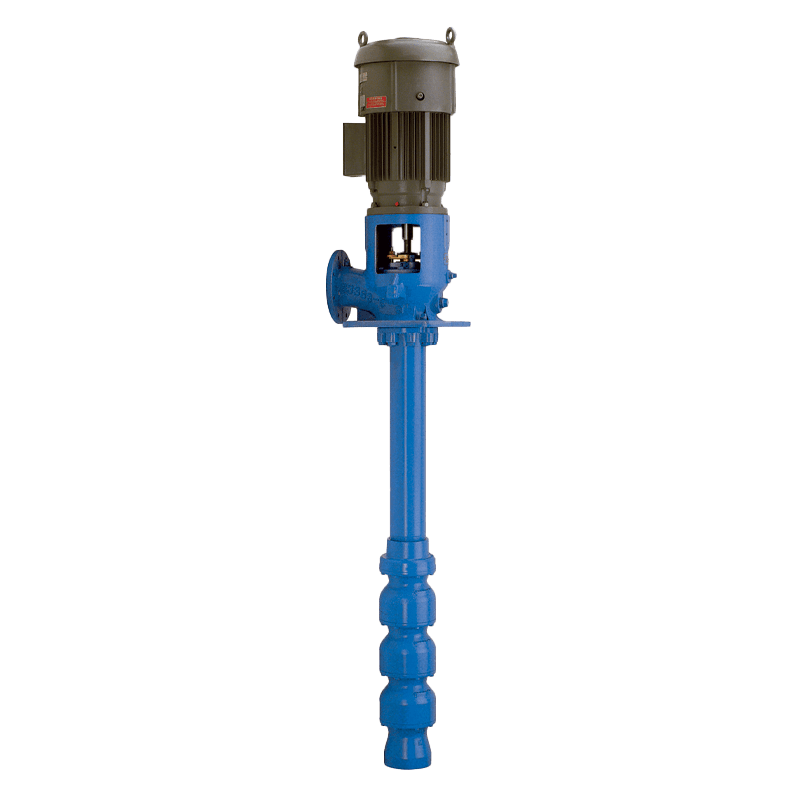

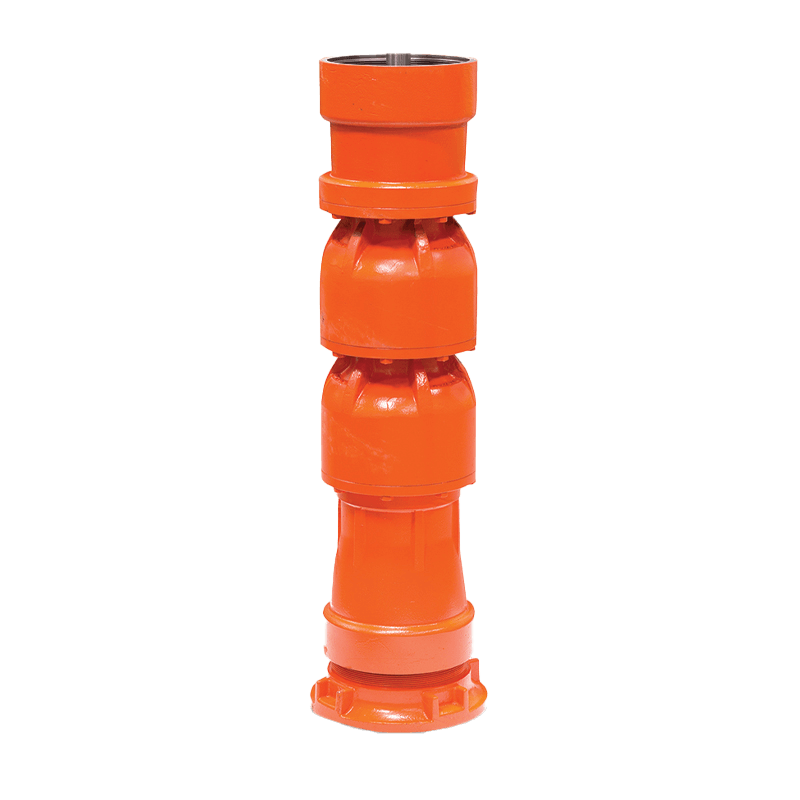

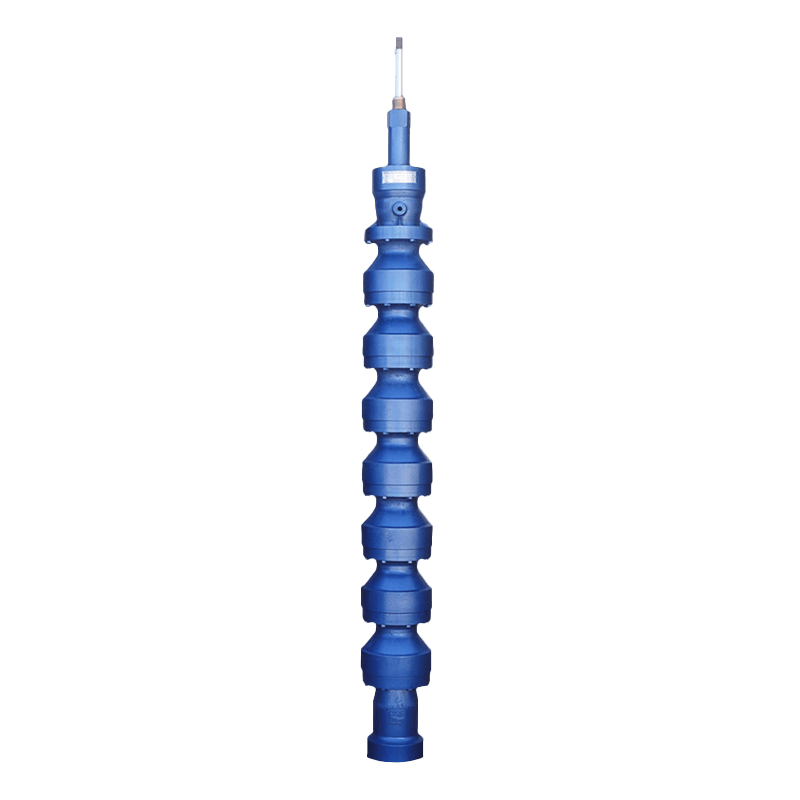

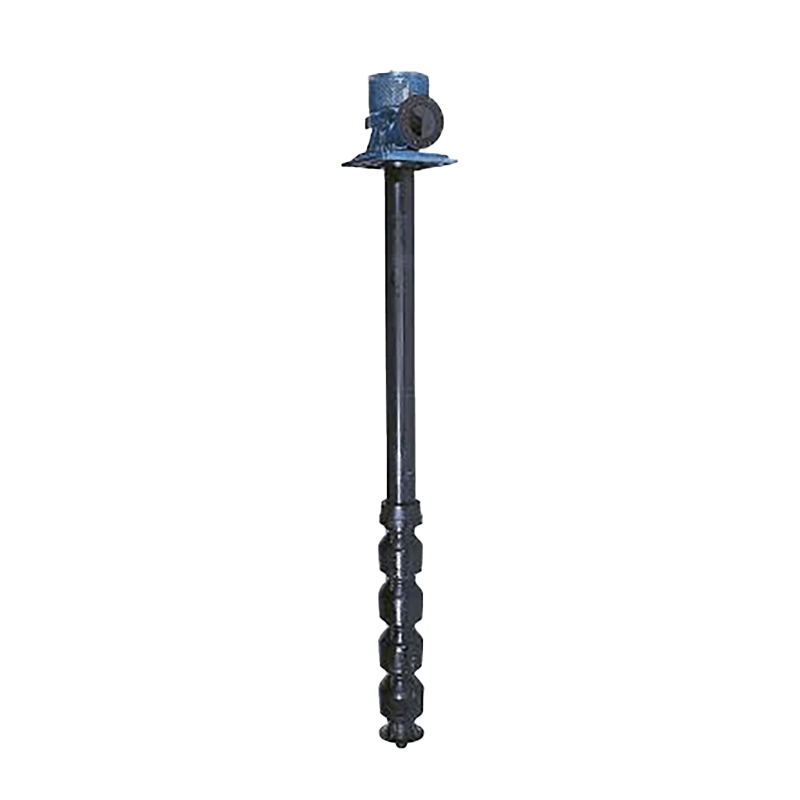

Deep Well Turbine

  • High efficiency, capacity, and head capabilities in most applications
  • Easily customized
  • Product lubed, oil lubed, or water flushed configurations
Request A Quote


  • Irrigation
  • Municipal water supply
  • Booster System
  • Dewatering


Bowl sizes 5-16”+
Flow Up to 6,000 GPM
Head 1,000 ft
HP Required Up to 1,000 HP
Power Supply electric motor, diesel/gas engines
Column Length 1000’
Liquid Types clean/fresh water
Temperature 36-178 F

Features & Benefits

Deep Well Turbines are extremely versatile and can be multi-stage for maximum flexibility both in the initial pump selection and if future system modifications require a change in the pump rating.

Product lubed or oil lubed? Product (water) lubed works great for applications up to 150 feet, anything above we recommend oil lube with enclosed lineshaft.

Deep Wells are preferred in deep set applications where motor efficiency and reliability are of major concern.

A deep well turbine pump can be driven by an above-ground vertical motor, an engine or horizontal motor through a right-angle gear drive, a flat belt pulley or a V-belt pulley connected to an engine.

Deep Well Turbine Pump drawing

Product Resources

For General Information, Terms & Conditions, Performance Curves and Engineering Data, please reference our manufacturer’s resources.
