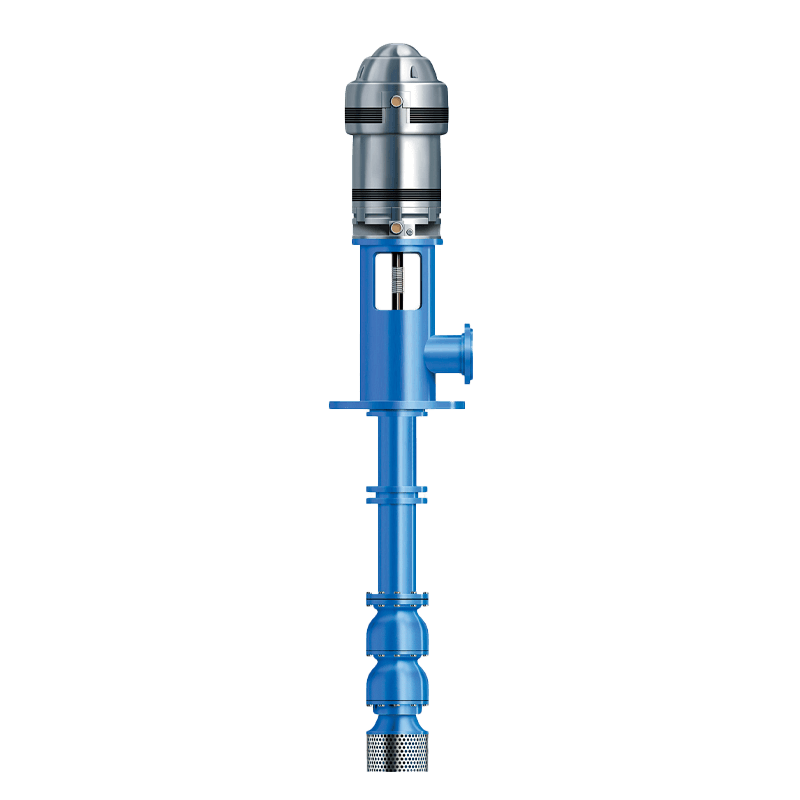

Short Set Lineshaft Turbine

  • Best for short set applications < 30 feet
  • High efficiency, capacity, and head capabilities in most applications
  • Easily customized
  • Product lubed or oil lubed
Request A Quote


  • Irrigation
  • Municipal water supply
  • Booster System
  • Dewatering
  • Water Parks
  • Mining
  • Industrial
  • Snow Making
  • Plant Water Systems


Bowl sizes 6-24”+
Flow Up to 10,000 GPM
Head 1,000 FT
HP Required Up to 1,000 HP
Power Supply electric motor, diesel/gas engines
Column Length 30 FT
Liquid Types clean/fresh water, sea water, mine dewatering
Temperature 36-178 F

Features & Benefits

Short Set Vertical Turbines are preferred in applications less than 30’ deep and are typically configured to be water lubricated, although they can be oil lubed as well for increased longevity.

Short Sets are extremely versatile and can be multi-stage for maximum flexibility both in the initial pump selection and if future system modifications require a change in the pump rating.

A short set turbine pump can be driven by an above-ground vertical motor, an engine or horizontal motor through a right-angle gear drive, a flat belt pulley or a V-belt pulley connected to an engine.

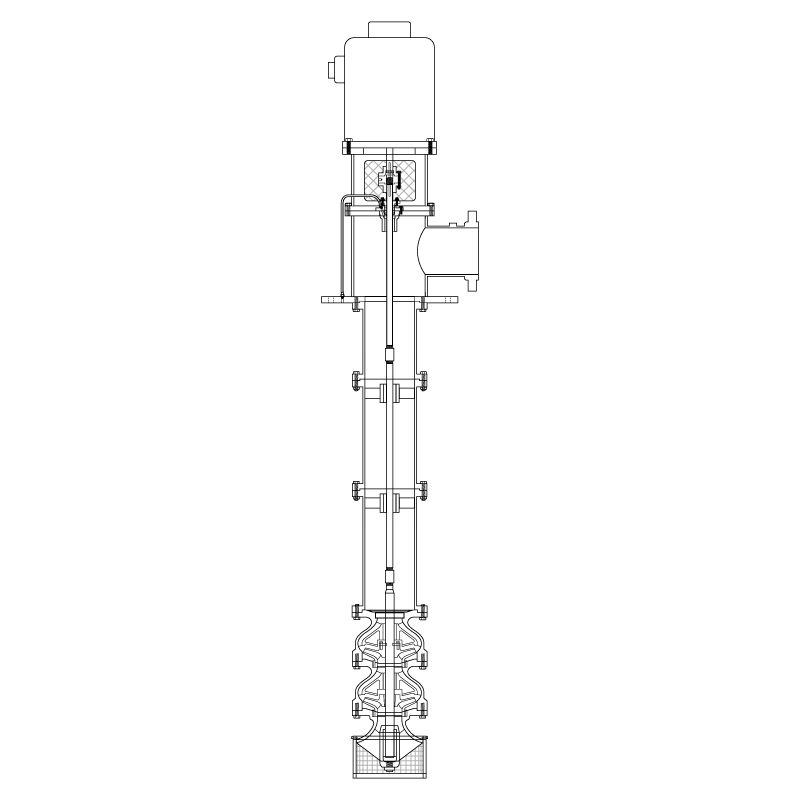

Short Set Section
