Custom Controls

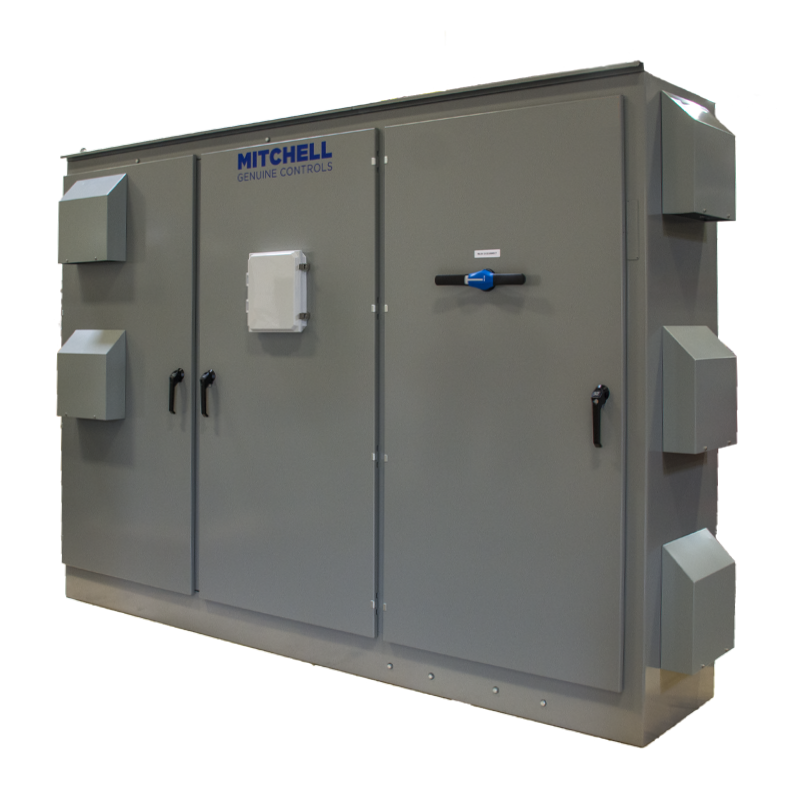

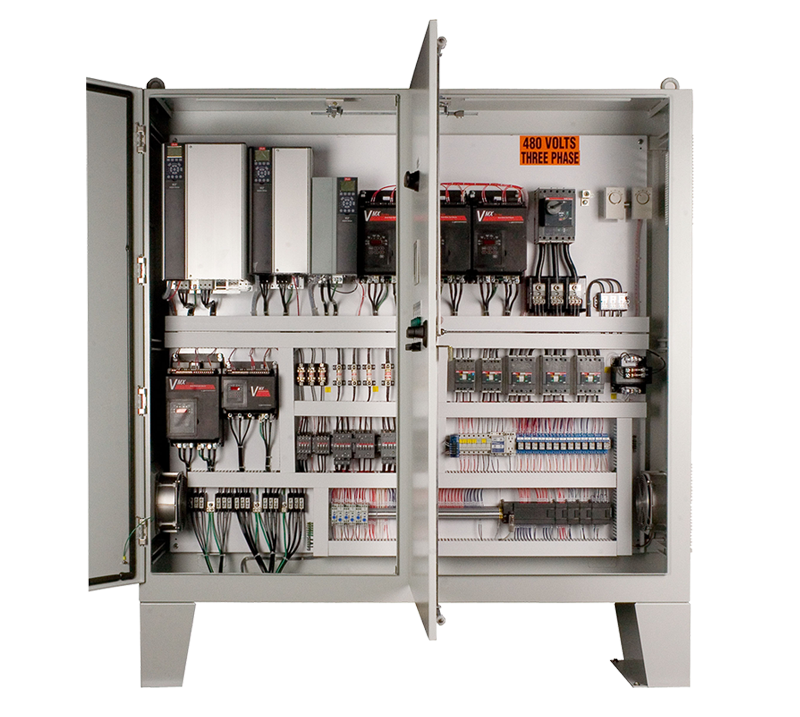

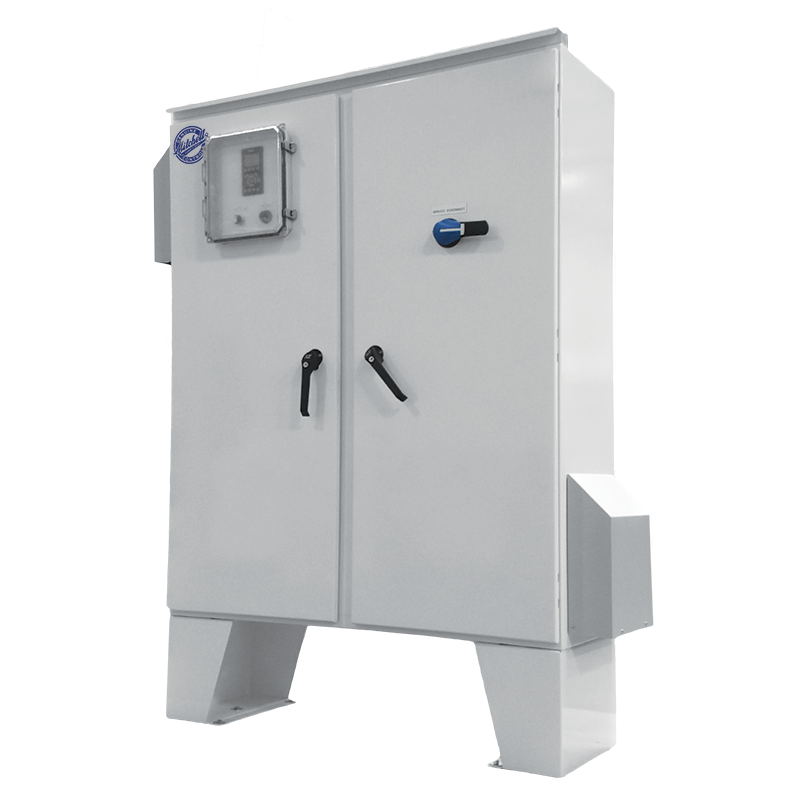

Our state-of-the-art facility manufactures custom control panels per UL508A or UL698A standards.

Our panels use only high-quality Danfoss/Vacon drives and range in size from 5 HP to 1,300+ horsepower, NEMA-rated and packed with a full array of features to fit your project requirements.

Our in-house engineers will assist you in designing and building the right system for the job, every time.

Request A Quote

Applications

Mitchell’s Controls provides full panel customization, documentation, system testing, technical assistance,
product training, and follow-up support.

  • Industrial
  • Wastewater
  • Agricultural
  • Irrigation
  • Food and beverage
  • Commercial

Features

HP Required 5 - 1,300 HP
Enclosure NEMA 3R, NEMA 4X, IP66
Mounting Flush, wall mount, on legs
Cooling Back channel, heat sink

Features & Benefits

We offer a full array of built-in features including filtration, programmable logic controllers (PLC), touchscreen operation interface, telemetry options
and multiple communication protocols.

  • Emergency across-the-line or soft start bypass
  • Programming and hardware for pressure, level, flow, or combination closed loop control
  • Fully engineered wiring schematics, layouts, and 3D renderings provided
  • Multiple set-point and HOA selector switch
  • Heat Sink Cooling for high temperature and polluted environments
  • Integrated input and output line reactors and filters
  • Remote Monitoring and Recording Data
  • Hand-off-Auto & Speed Potentiometer
  • Load Reactor, DV/DT, and sine wave output filters
  • Digital and analog radio control and feedback systems
  • Programmable Logic Controllers
  • Service Entry Rated Disconnect
  • Multiple drive systems and communication protocols
Mitchell Custom Controls

Michell Lewis & Staver Go-To Pro

Darin Malcolm

Darin Malcolm

Utilizing all available resources and the latest cutting-edge programming technology, I enjoy developing new products and creating innovative solutions that solve the needs of our customers, resulting in energy savings for end users. Having worked for several industry-leading manufacturers since 1991, I am fortunate to work with great customers providing technical support on existing systems and start-up assistance for new installations in applications requiring variable frequency drives, reduced voltage soft starters, and advanced motor controls.
