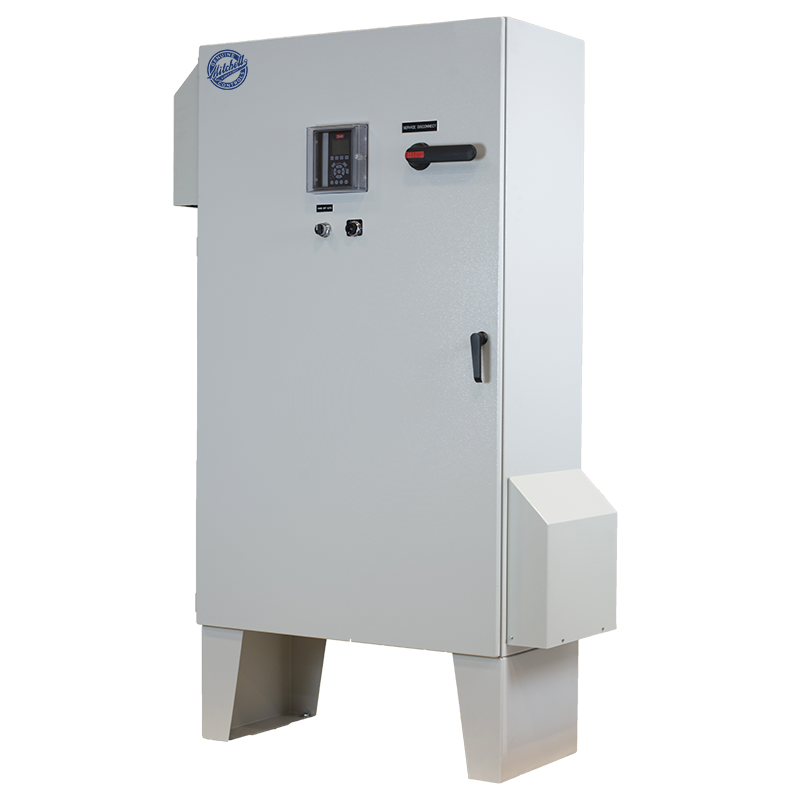

D-Series VFD Control

Mitchell’s Genuine Controls “D” Series NEMA 3R VFD control panels feature the industry leading Danfoss line of Variable Frequency Drives.

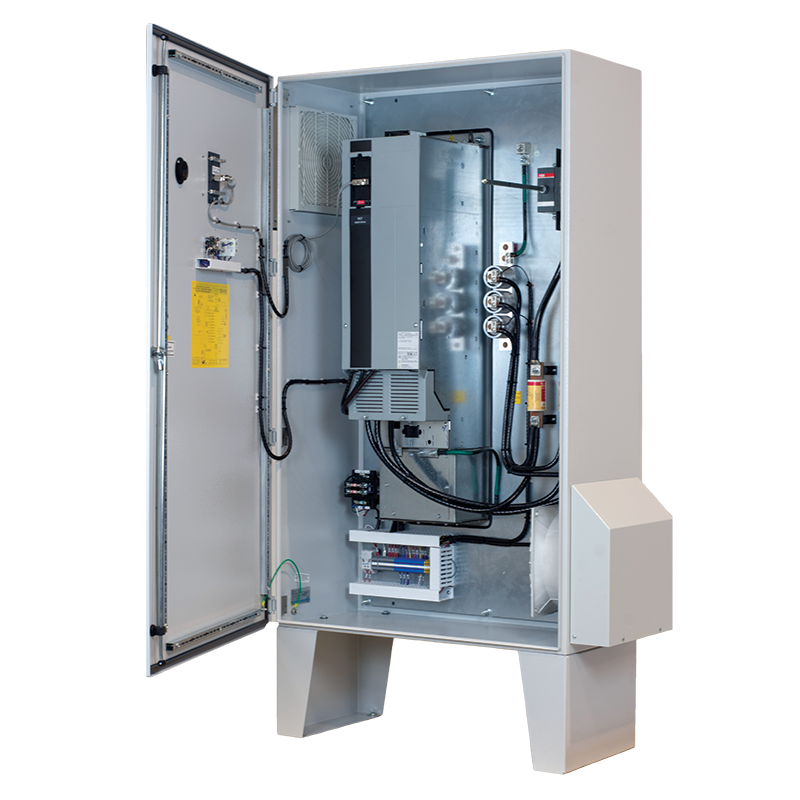

Fully engineered and customized to your exact specifications, internal features and added components are easily configured, often without modifications to the panel chassis. The D-Series allows for flush-mounting
to any surface.

Request A Quote

Applications

Pre-programmed dedicated features for water, wastewater, and irrigation applications.

Optimized for both submersible and above ground pump control and engineered to meet or exceed all state energy and UL safety requirements.

Features

HP Required 5 - 600 HP
Enclosure NEMA 3R
Mounting Flush or on legs
Cooling Back channel

Features & Benefits

  • Back Channel cooling eliminates 90% of generated heat
  • Service entrance rated disconnect with external operator and door interlock
  • Pre-programmed with customized menu and quick start guide
  • Lockable acrylic hinged cover w/ UV inhibitors
  • Mounting kits for wall or floor installation
  • Door mounted VFD operator interface
  • 120V and VFD I/O wired to a terminal strip for convenience with field connections
  • 120V transformer with fusing for ancillary equipment

Product Resources

For general information, specifications, and drive programming, please reference the following resources.
