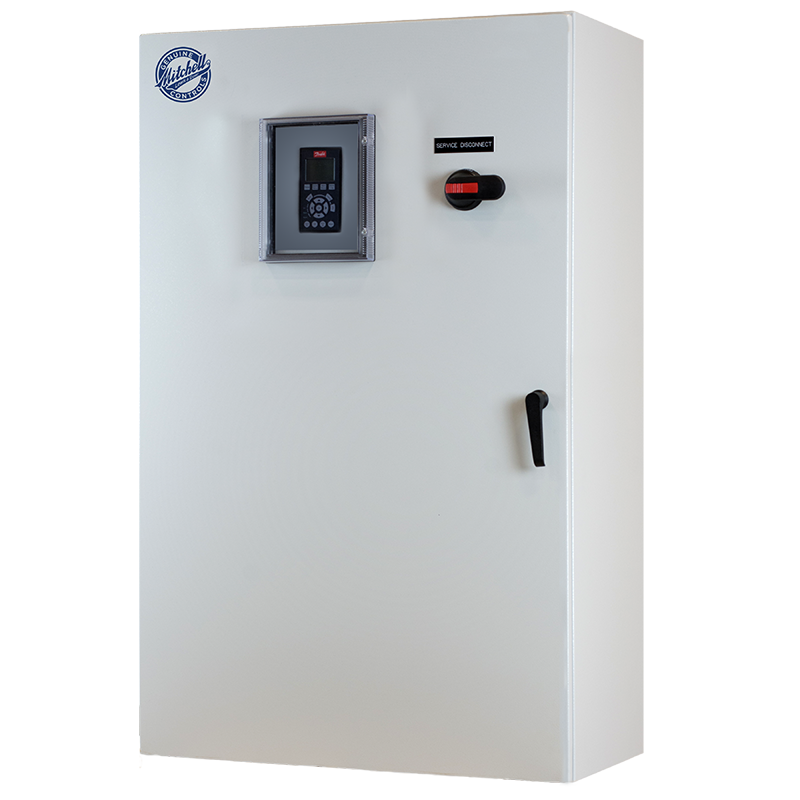

W-Series VFD Control

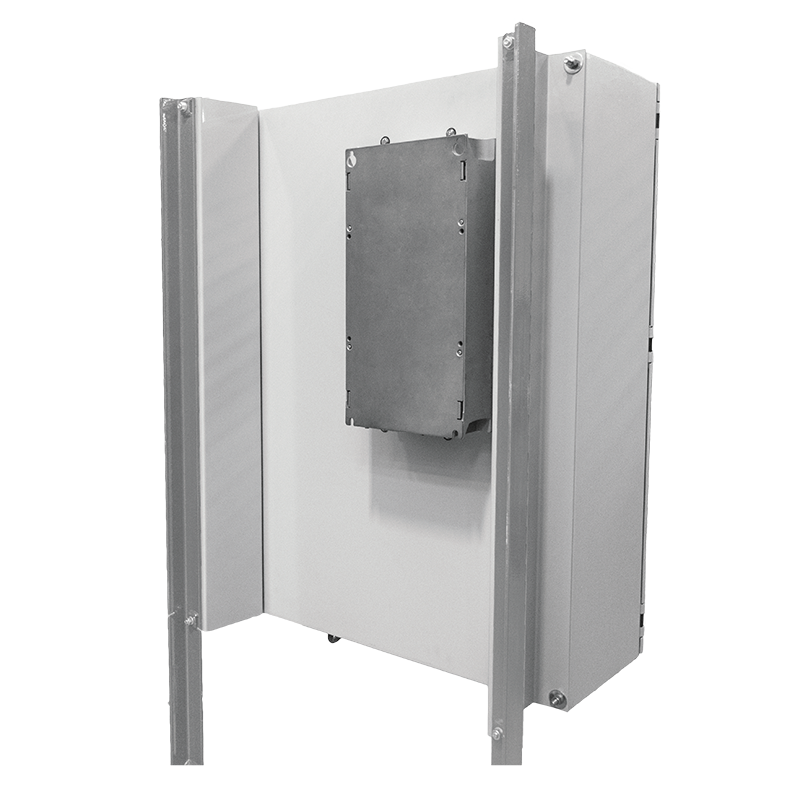

Mitchell’s Genuine Controls “W” Series NEMA 3R VFD control panels feature the industry leading Danfoss FC202 Aqua Drive with heat sink cooling up to 125 HP. The fan cooled heat sink drive extends through the back of the panel, providing a reduced enclosure footprint and a significant reduction in the internal heat load.

Request A Quote

Applications

Pre-programmed dedicated features for water, wastewater, and irrigation applications.

Optimized for both submersible and above ground pump control and engineered to meet or exceed all state energy and UL safety requirements.

Features

HP Required 5 - 600 HP
Enclosure NEMA 3R
Mounting Wall mount or on legs
Cooling Heat Sink

Features & Benefits

  • External heat sink cooling for high-temperature applications 125Hp and below
  • Sealed weatherproof enclosure protects sensitive electronics from outside air
  • No fans, filters, or air conditioning required for improved performance and reduced maintenance
  • Hand-Off-Auto selector and speed potentiometer
  • Wall mount brackets
  • Service entrance rated disconnect with external operator and door interlock
  • Pre-programmed with customized menu and quick start guide
  • Lockable acrylic hinged cover w/ UV inhibitors
  • Door mounted VFD operator interface,
  • 120V and VFD I/O wired to a terminal strip for convenience with field connections
  • 120V transformer with fusing for ancillary equipment

Product Resources

For general information, specifications, and drive programming, please reference the following resources.
